Energocenter

INDEX

• Devices menu
• Side menu

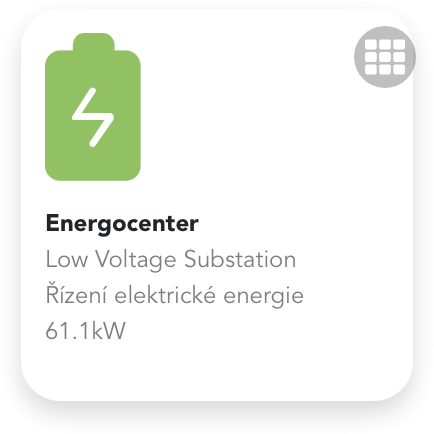

Component is showing electrical consumption from distribution network meter at the bottom and has two possible actions on clicking.

First, after clicking on icon at the top right corner, application will open menu with accessible devices from Energocenter.

Second, after clicking anywhere else on the icon, vertical bar will appear on the page, showing available informations and settings, based on user rights.

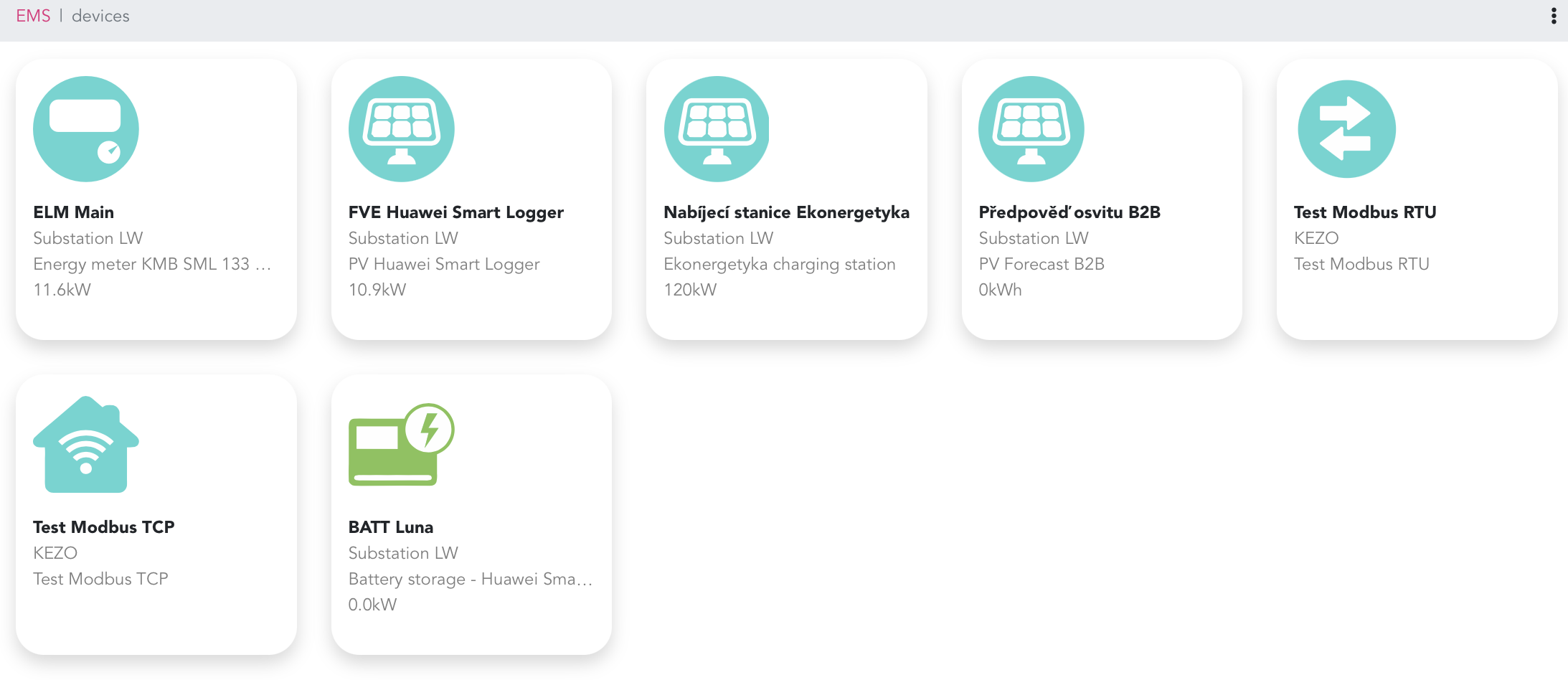

Devices menu

Menu lists devices connected to EMS control. Following devices may appear:

• Energy meter
• EV charging station
• Weather forecast
• PV inverters
• PV inverters logger devices (i.e. Smart Logger, Data Hub, Data Logger, etc.)
• Batteries
• Battery storage manager
• And other devices

After clicking on device, based on assigned permissions, it is possible to view or change settings of specific device.

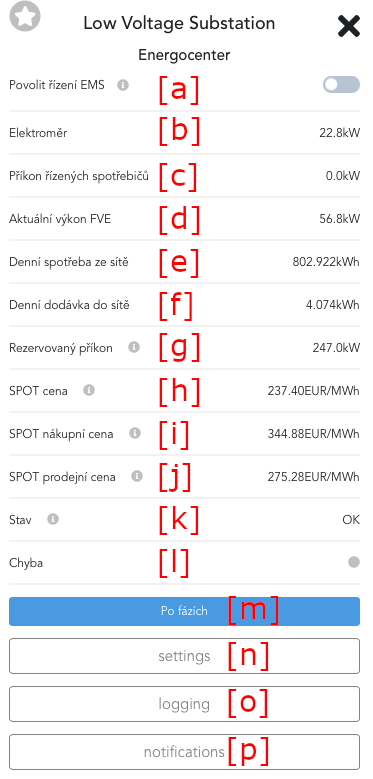

Side menu

[a] - enable the EMS control: If enabled, power plant is controlled by EMS. In case you want to shut down the power plant (turn production to 0W), simply turn off the EMS control and power plant will automatically decrease power to 0W.

[b] - electricity meter: cumulative power consumption from all tree phases on the distribution network side.

[c] - power consumption of controlled appliances

[d] - actual FV power plant power

[e] - daily total power consumption from distribution network

[f] - daily total power exported to distribution network

[g] - reserved power consumption: maximal amount of energy, that can be used from distribution network

[h] - SPOT price: daily market price

[i] - buying SPOT price

[j] - selling SPOT price

[k] - status of EMS

[l] - error

[m] - submenu with values from electricity meter per phase

[n] - submenu with available settings of EMS

[o] - logging: shows parameters which can be logged for diagnostic of power plant or used on dashboard (Grafana)

[p] - notification: list of notifications that can user enable to get nofitications via email of push. We recommend to enable EMS error notification.
